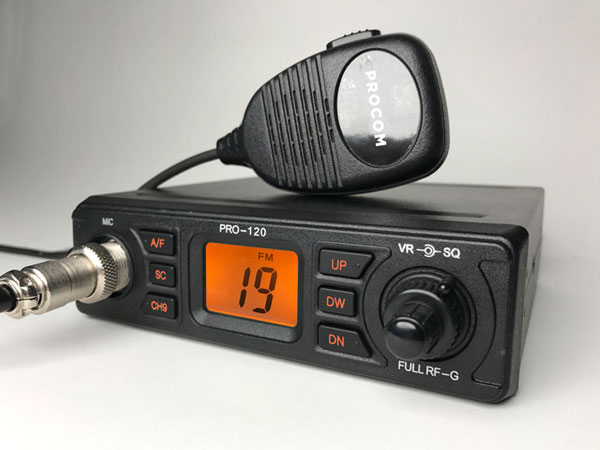

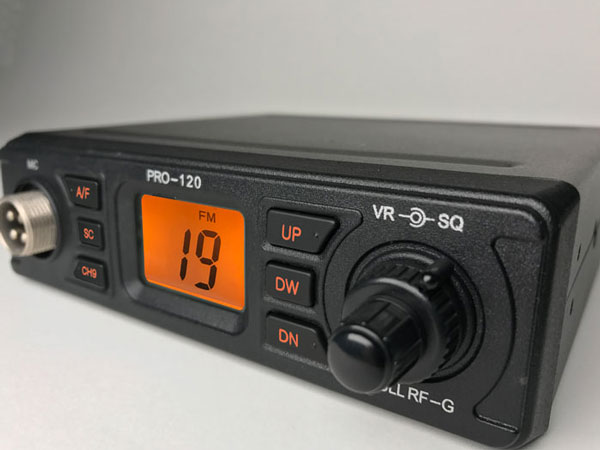

PRO-120








PRO-120

40 CH AM/FM CB TRANSCEIVER

FEATURE



FUNCTION
         1. AM/FM  SW (FM OR AMONLY ->LCR)
         2. SCAN SW // DE OPTION
         3. CH-9 (RESET) SW//LONG KEY LOC 120CH>>band "L0W>MID>HIGH"
         4. UP SW
         5. DOWN SW
         6. DW  //  CEPT OPTION)
         7. 5KHz option SW A/F+CH9 = 5K(ㅡ+) OPTION
            STANDARE AREA : -5KHz , POLAND AREA : +5KHz

CONTROLS
1. AF VOLUME CONTROL, W/ ON / OFF SW
2. SQUELCH VOLUME CONTROL
3. RF VOLUME CONTROL

LCD DISPLAY
1. CHANNEL-2DIGIT
2. TX
3. AM/FM
4. SC
5. L ,M , H
         6. DW
         7. 5K

LAST CHANNEL MEMORY
3.5 PIE EXT SPEAKER JACK
M-TYPE ANT CONNECTOR
6 PIN MIC JACK
          C-MIC, PTT SW
          MIC UP/DOWN
BILT-IN  AUTOMATIC NOISE LIMIT
DIMENSION : W-140mm . D-125mm . H-41mm.
WEIGHT :     g.(gift total :  g)



ELECTRICAL

GENERAL
        @ TRANSMITTER......... CRSTAL CONTROLLED PLL SYNTHESIZER
        @ RECEIVER.................... DOUBLE CONVERSION, SUPERHETERODYNE SYSTEM
        @ VOLTAGE OPERATION......... DC 13.8 V
        @ TEMPERATURE........................ -10 ℃ ~ +50 ℃
        @ CHANNEL STEP ..................... 10 Khz


TRANSMITTER
@ OUTPUT POWER........................... FM/AM :  4WATTS
@ FREQUENCY RANGE................... 26.965 ~ 27.405 MHz
option         LOW BAND :26.515 ~  26.955 MHz
MID BAND  :26.965 ~ 27.405 MHz
HI   BAND : 27.415 ~  27.855 MHz
POLAND OPTION :POLAND 120CH FREQUENCY
@ FREQUENCY TOLERANCE........ +-500 Hz
@ MODULATION SENS.................... 6mV(1.25KHz INPUT:C-MIC)
@ MODULATION CAPABLITY...... AM : 90 % / FM : 2 KHz

RECEIVER
@ SENSITIVITY.................................... AM : 0.5 uV(S/N 10dB)
FM : 0.3 uV (SINAD12dB)
@ SQUELCH............................................ 1mV MAX
@ S/N RATIO......................................... 45 dB
@ DISTORTION.....................................  5 %
@ MAX POWER....................................  4 WATTS

TEST CONDITION
@ POWER SOURCE............................. DC 13.8 VOLTS
@ ANT LOAD IMPEDANCE............ 50 ohm NON-INDUCTIVE
@ AUDIO LOAD IMPEDANCE.......  8 ohm NON-INDUCTIVE
