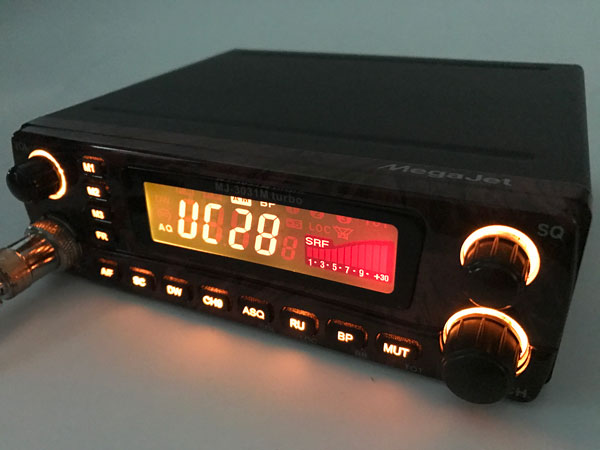

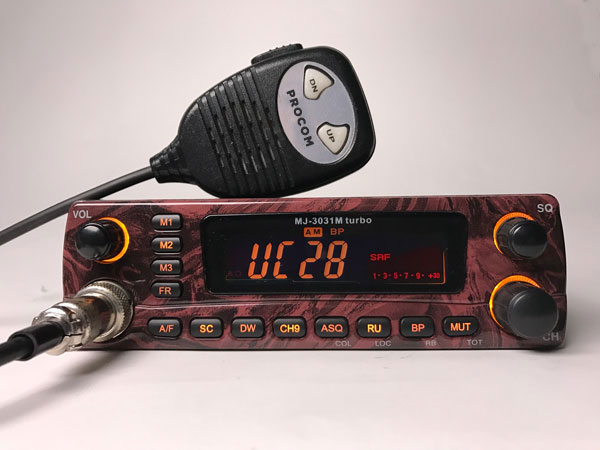

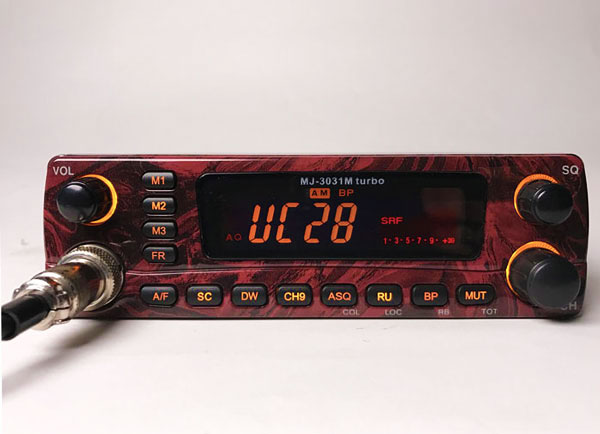

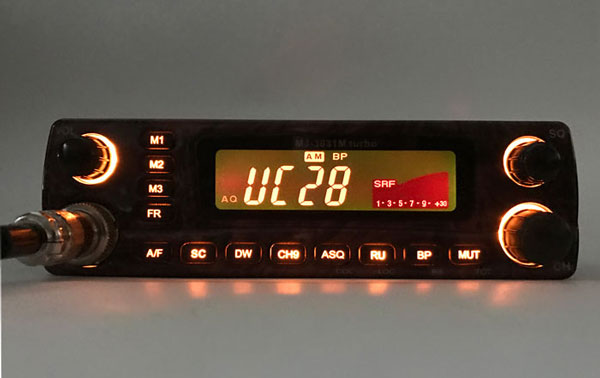

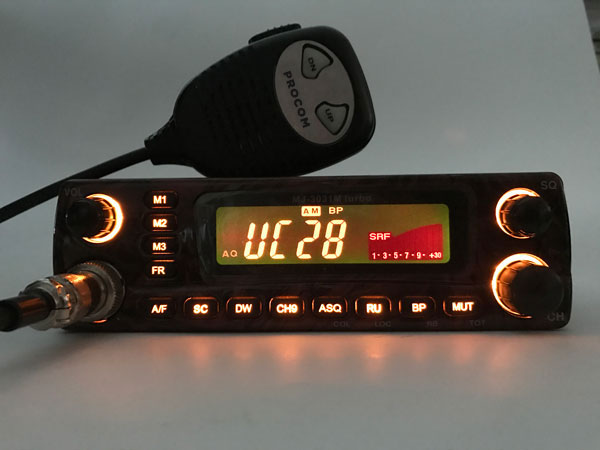

PRO-3031MTB Black / Wood
PRO-3031MT
40 CH AM/FM CB TRANSCEIVER
FEATURE
FUNCTION
1. MOMORY 1, MEMORY2,MEMORY3 SW
2.FREQUENCY / CHANNEL SELECTION SW
2. AM/FM SELECTION SW and OPTION EXPANDER SW(240CH)
3. CH9 SELECTION (RESET) SW and BAND SELECTOR (A~F) SW
4. SCAN SEARCH SW and OPTION MULTI STANDARD SW(6 AREA)
5. DW SEARCH SW
6. ASQ // AMBER/GREEN BACK LIGHT SELECTION SW –POSITIVE LCD or AMBER / RED BACK LIGHT SELECTION SW – NEGATIVE LCD
7. CH19 SELECTION SW
8. BEEP // ROGER BEEP(FM ONLY) SW
9. AUDIO MUTE // TX TIME OFF TIME(TOT) SW
CONTROLS
1. AF ROTARY VOLUME CONTROL W/ ON/OFF SW
2. SQUELCH ROTARY VOLUME CONTROL
3. CHANNEL UP/DOWN ROTARY CONTROL
LCD DISPLAY
1. CHANNEL /FREQUENCY
2. TX/ BP/ DW/ SC/RB/TOT/MUTE
3. MEMORY CHANNEL 1-3
4. FM/AM/AQ
5. 7 BAR LEVEL METER
6. AMBER /GREEN 2COLOR ALL BACK LIGHT
3.5 PIE EXT SPEAKER JACK
M-TYPE ANT CONNECTOR
6 PIN MIC JACK
1. MIC UP/DOWN SWITCH
2. MIC ASQ SWITCH
3. CONDENSER-MICROPHONE
BILT-IN AUTOMATIC NOISE LIMIT
DIMENSION : D-150mm . W-145mm . H-48mm.
WEIGHT : g.(gift total : g)
ELECTRICAL
GENERAL
@ TRANSMITTER......... CRSTAL CONTROLLED PLL SYNTHESIZER
@ RECEIVER.................... DOUBLE CONVERSION, SUPERHETERODYNE SYSTEM
@ VOLTAGE OPERATION............ DC 13.8 V
@ TEMPERATURE........................ -10 ℃ ～ +50 ℃
@ CHANNEL STEP ..................... 10 Khz
TRANSMITTER
@ OUTPUT POWER........................... FM/AM : 4WATTS
*OPTION : FM : 9WATTS , AM :7 WATTS
@ FREQUENCY RANGE................... 26.965 ～ 27.405 MHz
*OPTION 240CH : 25.615 ～ 28.305 MHz (A~F 6 BAND)
1) A BAND : 25.615 ~ 26.055 MHz
2) B BAND : 26.065 ~ 26.505 MHz
3) C BAND : 26.515 ~ 26.955 MHz
4) D BAND : 26.965 ~ 27.405 MHz
5) E BAND : 27.415 ~ 27.855 MHz
6) F BAND : 27.865 ~ 28.305 MHz
- POLAND SET =POLAND 240CH(25.610~28.300MHz)
*OPTION MULTI STANDARS 6 AREA
1) dE : AM 40CH 1W , FM 80CH 4W(GERMANY)
2) Fr : AM40CH 1W , FM 40CH 4W(EU)
3) CE : FM 40CH 4W(CEPT)
4) E :AM40CH 4W , FM40CH 4W(SPAIN ,ITALY)
5) U : FM40CH 4W(UK-MPT)
6) PO :AM40CH 4W , FM40CH 4W(POLAND)
@ FREQUENCY TOLERANCE........... +-300 Hz
@ MODULATION SENS.................... 3mV(1.25KHz INPUT)
@ MODULATION CAPABLITY....... . AM : 90 % / FM : 2 KHz
RECEIVER
@ SENSITIVITY.................................... AM : 0.5 uV(S/N 10dB at 30% MOD)
FM : 0.20 uV (SINAD12dB at 1.5K DEV)
@ FREQUENCY RANGE....................... 26.965 ～ 27.405 MHz
*OPTION 240CH : 25.615 ～ 28.305 MHz(6 BAND)
@ SQUELCH............................................ 1 uV
@ AUTO SQUELCH................................. 0.3 uV
@ S/N RATIO......................................... 40 dB
@ DISTORTION..................................... 3 %
@ MAX POWER.................................... 4 WATTS
@ S/METER(S-9)................................... 100 uV
TEST CONDITION
@ POWER SOURCE............................. DC 13.8 VOLTS
@ ANT LOAD IMPEDANCE............ 50 ohm NON-INDUCTIVE
@ AUDIO LOAD IMPEDANCE....... 8 ohm NON-INDUCTIVE
