PRO-600 PLUS / PLUS HP

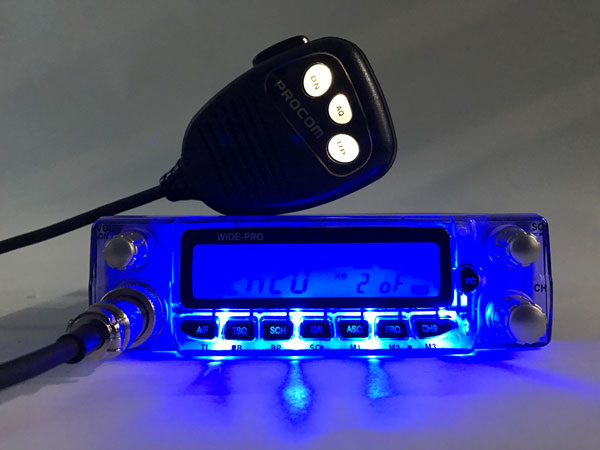

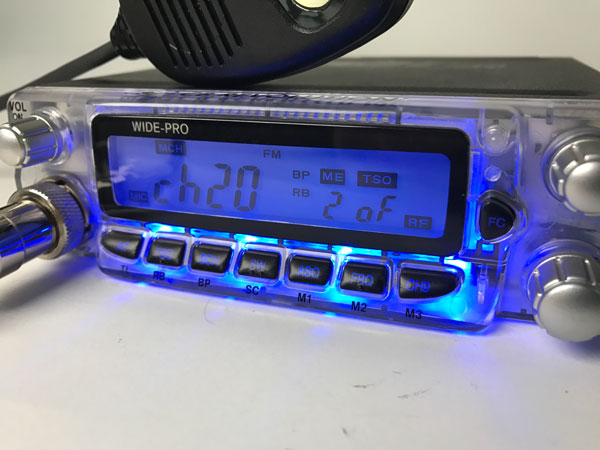

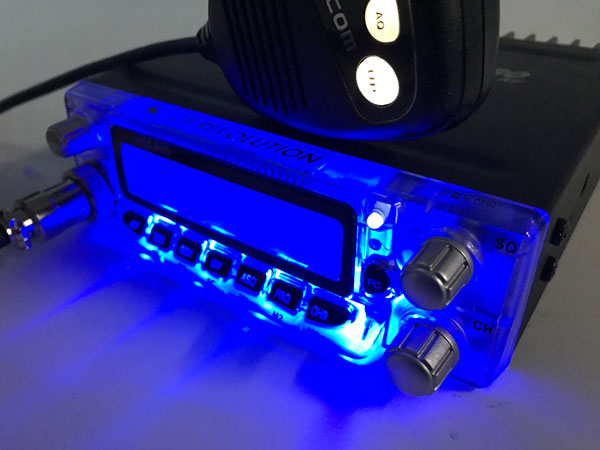

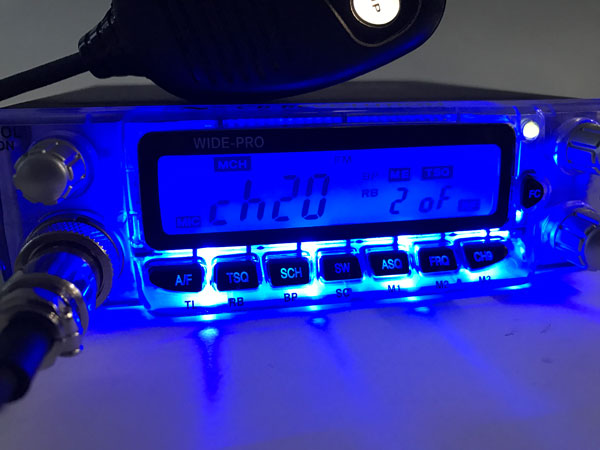

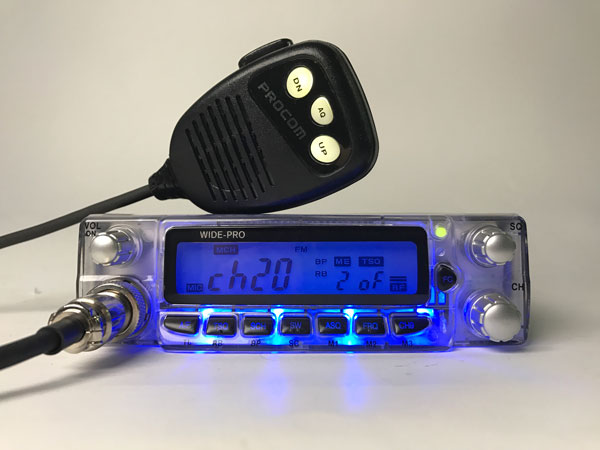

PRO-600 PLUS
40 CH AM/FM CB TRANSCEIVER
FEATURE
FUNCTION
1. FUNCTION(FC) SELECTION SW
2. AM/FM SELECTION SW
2-1. AMonly or FMonly ( LCR SW)
3. TL(TONE LOW) // ROGER BEEP SW
4. SUB CHANNEL(SCH) // BEEP SW
5. SUB WEARCH(SW) // SCAN SEARCH SW
6. AUTO SQUELCH(ASQ) // MEMORY 1 SW
7. FREQUENCY(FRQ) // MEMORY 2 SW
8. EMG(CH9) // MEMORY 3 SW
* CONTROLS
1. AF VOLUME CONTROL W/ ON/OFF SW
2. SQUELCH CONTROL (NOISE DET)
3. CHANNEL UP/DOWN CONTROL
LCD DISPLAY(VFD DISPLAY)
1. CHANNEL / FREQUENCY 5SEGMENT DISPLAY
2. RB / BP / TL
2. SW/ SC /
3. MEMORY CHANNEL 1-3 1SEGMENT DISPLAY
4. FM / AM /
5. 6 BAR SRF LEVEL METER
6. 6 BAR MIC LEVEL METER
TX & RX LED
* 3.5 PIE EXT SPEAKER JACK
* M-TYPE ANT CONNECTOR
BILT-IN NOISE BLANK and AUTOMATIC NOISE LIMIT
LED BACK LIGHTING
NOISE SQUELCH.
8 PIN MIC JACK
1. MIC UP / DOEN SWITCH
2. DY - MICROPHONE
3. ASQ SWITCH
4. EXT 13.8V B+ TERMINAL
DIMENSION : D-140mm . W-125mm . H-42mm.
WEIGHT : g.(gift total : g)
ELECTRICAL
GENERAL
@ TRANSMITTER......... CRSTAL CONTROLLED PLL SYNTHESIZER
@ RECEIVER.................... DOUBLE CONVERSION, SUPERHETERODYNE
SYSTEM
@ VOLTAGE OPERATION......... DC 13.8 V
@ TEMPERATURE........................ -10 ℃ ∼ +50 ℃
@ CHANNEL STEP ..................... 10 Khz
TRANSMITTER
@ OUTPUT POWER........................... FM/AM : 4WATTS
*OPTION : FM 10W , AM :8W
*EU : FM 9W , AM7W
@ FREQUENCY RANGE................... 26.965 ∼ 27.405 MHz
* OPTION 240 CH :25.615 ~ 28.305MHz(6 BAND)
@ FREQUENCY TOLERANCE........ +-300 Hz
@ MODULATION SENS.................... 3mv(1.25KHz INPUT)
@ MODULATION CAPABLITY...... AM : 90 %
FM : 2 KHz
RECEIVER
@ SENSITIVITY.................................... AM : 0.5 uV(S/N 10dB)
FM : 0.3 uV (SINAD12dB)
@ SQUELCH............................................ 0.5 uV
@ AUTO SQUELCH............................. 0.3 uV
@ S/N RATIO......................................... 40 dB
@ DISTORTION..................................... 3 %
@ MAX POWER.................................... 4 WATTS
@ S/METER(S-9).................................. 100 uV
TEST CONDITION
@ POWER SOURCE............................. DC 13.8 VOLTS
@ ANT LOAD IMPEDANCE............ 50 ohm NON-INDUCTIVE
@ AUDIO LOAD IMPEDANCE....... 8 ohm

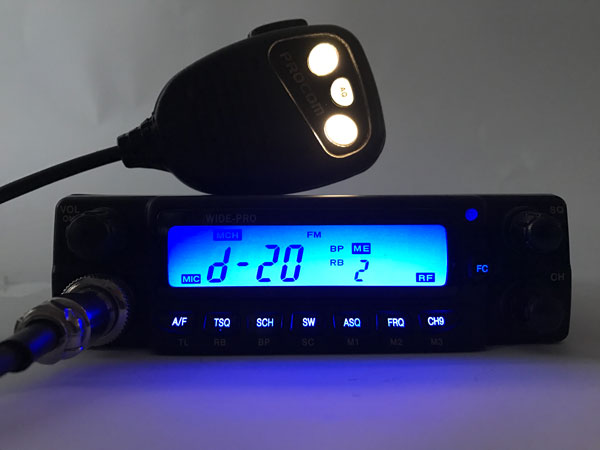

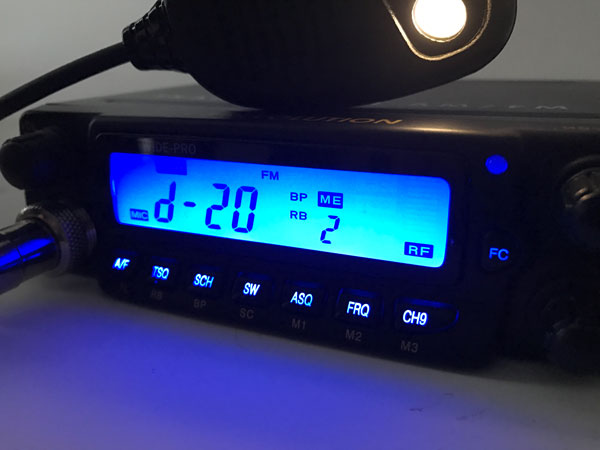

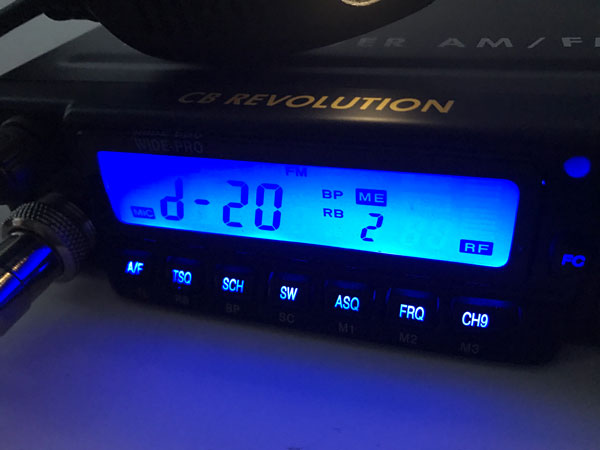

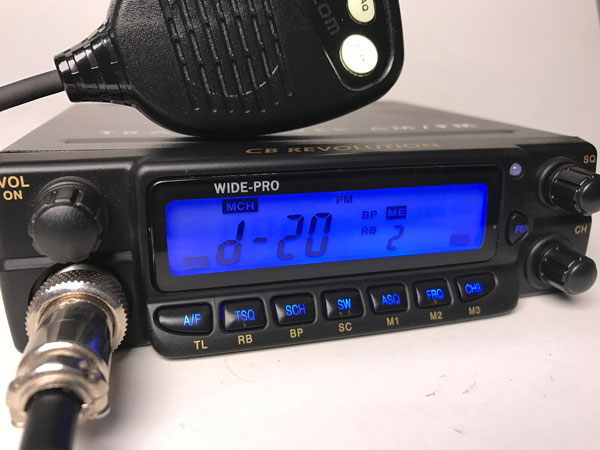

PRO-600 PLUS HP
40 CH AM/FM CB TRANSCEIVER
FEATURE
FUNCTION
1. FUNCTION(FC) SELECTION SW
2. AM/FM SELECTION SW
2-1. AMonly or FMonly ( LCR SW)
3. TL(TONE LOW) // ROGER BEEP SW
4. SUB CHANNEL(SCH) // BEEP SW
5. SUB WEARCH(SW) // SCAN SEARCH SW
6. AUTO SQUELCH(ASQ) // MEMORY 1 SW
7. FREQUENCY(FRQ) // MEMORY 2 SW
8. EMG(CH9) // MEMORY 3 SW
CONTROLS
1. AF VOLUME CONTROL W/ ON/OFF SW
2. SQUELCH CONTROL (NOISE DET)
3. CHANNEL UP/DOWN CONTROL
LCD DISPLAY(VFD DISPLAY)
1. CHANNEL / FREQUENCY 5SEGMENT DISPLAY
2. RB / BP / TL
2. SW/ SC /
3. MEMORY CHANNEL 1-3 1SEGMENT DISPLAY
4. FM / AM /
5. 6 BAR SRF LEVEL METER
6. 6 BAR MIC LEVEL METER
* TX & RX LED
* 3.5 PIE EXT SPEAKER JACK
* M-TYPE ANT CONNECTOR
* BILT-IN NOISE BLANK and AUTOMATIC NOISE LIMIT
* LED BACK LIGHTING
* NOISE SQUELCH.
* 8 PIN MIC JACK
1. MIC UP / DOEN SWITCH
2. DY - MICROPHONE
3. ASQ SWITCH
4. EXT 13.8V B+ TERMINAL
* DIMENSION : D-140mm . W-145mm . H-42mm.
* WEIGHT : g.(gift total : g)
ELECTRICAL
GENERAL
@ TRANSMITTER......... CRSTAL CONTROLLED PLL SYNTHESIZER
@ RECEIVER.................... DOUBLE CONVERSION, SUPERHETERODYNE SYSTEM
@ VOLTAGE OPERATION......... DC 13.8 V
@ TEMPERATURE........................ -10 ℃ ∼ +50 ℃
@ CHANNEL STEP ..................... 10 Khz
TRANSMITTER
@ OUTPUT POWER........................... * FM :16WATTS / * AM :11WATTS
@ FREQUENCY RANGE................... 26.965 ∼ 27.405 MHz
* OPTION 240 CH :25.615 ~ 28.305MHz(6 BAND)
@ FREQUENCY TOLERANCE........ +-300 Hz
@ MODULATION SENS.................... 3mv(1.25KHz INPUT)
@ MODULATION CAPABLITY...... AM : 90 %
FM : 2 KHz
RECEIVER
@ SENSITIVITY.................................... AM : 0.5 uV(S/N 10dB) / FM : 0.3 uV (SINAD12dB)
@ SQUELCH............................................ 0.5 uV
@ AUTO SQUELCH............................. 0.3 uV
@ S/N RATIO......................................... 40 dB
@ DISTORTION..................................... 3 %
@ MAX POWER.................................... 4 WATTS
@ S/METER(S-9).................................. 100 uV
TEST CONDITION
@ POWER SOURCE............................. DC 13.8 VOLTS
@ ANT LOAD IMPEDANCE............ 50 ohm NON-INDUCTIVE
@ AUDIO LOAD IMPEDANCE....... 8 ohm
